Testing a Workflow

The Test feature enables users to

• Validate the functionality of deployed and promoted workflow versions.

• Test workflows in both Secured API and Public API modes.

• Customize headers, parameters, and request bodies to simulate real-world scenarios.

1. Accessing the Test Feature

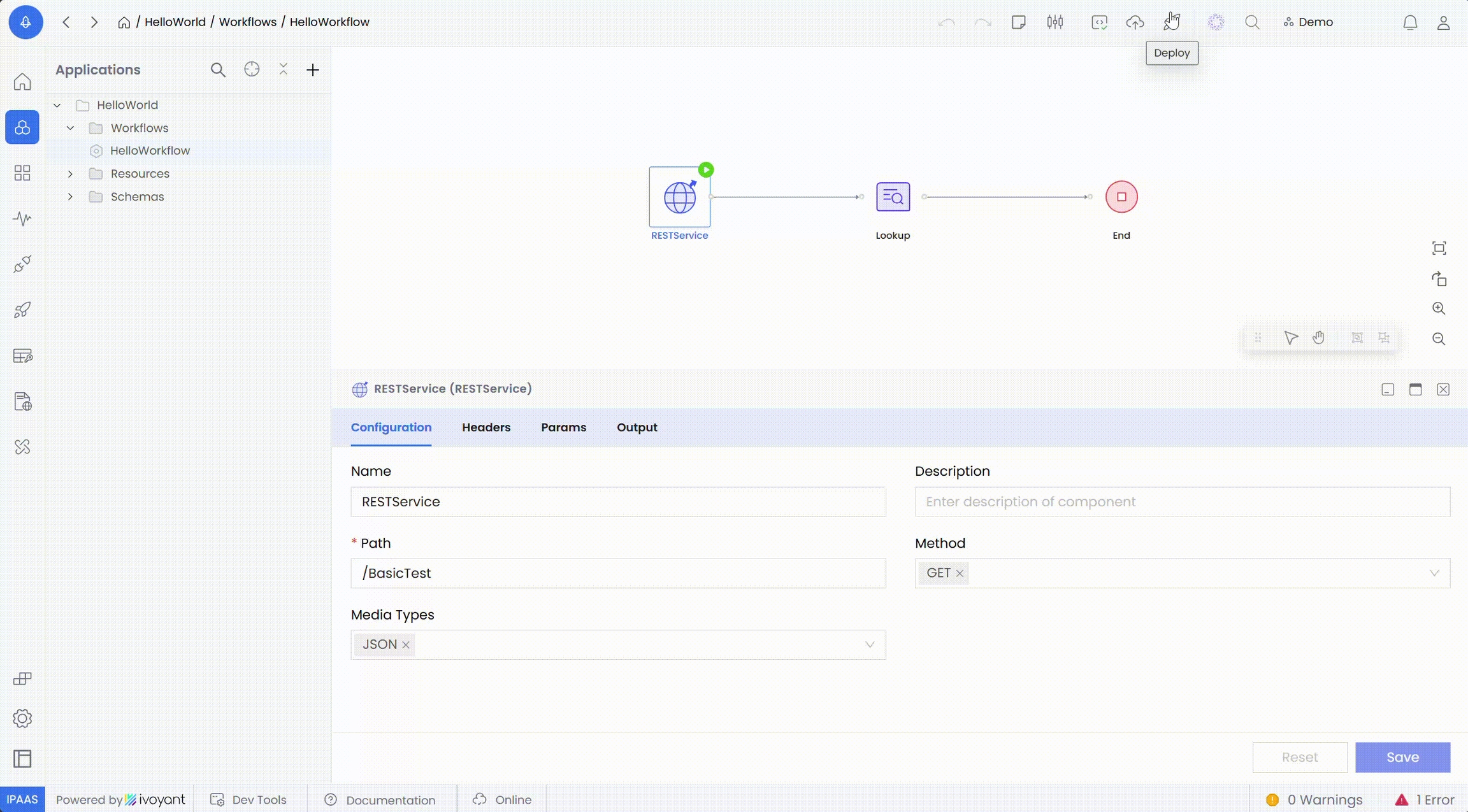

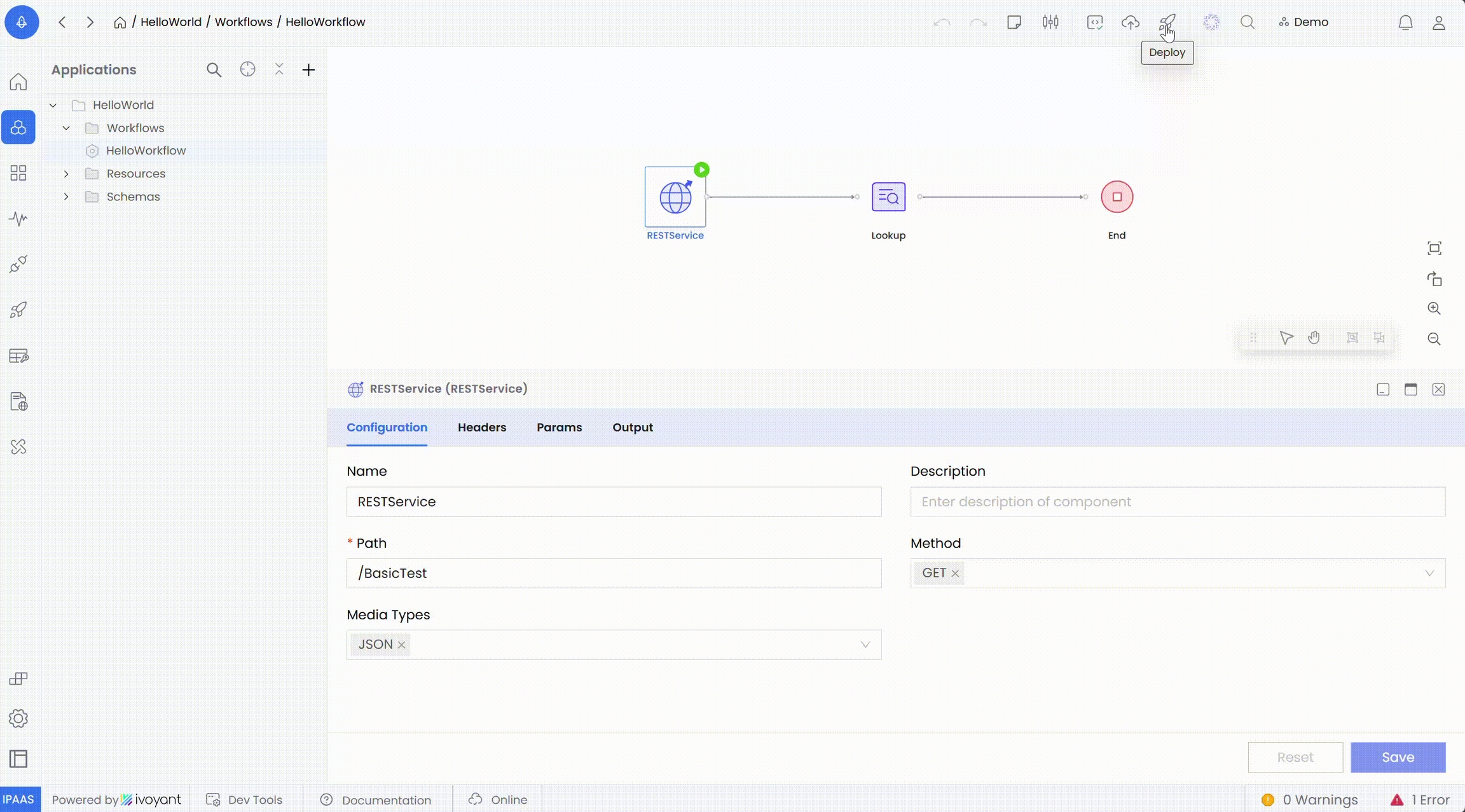

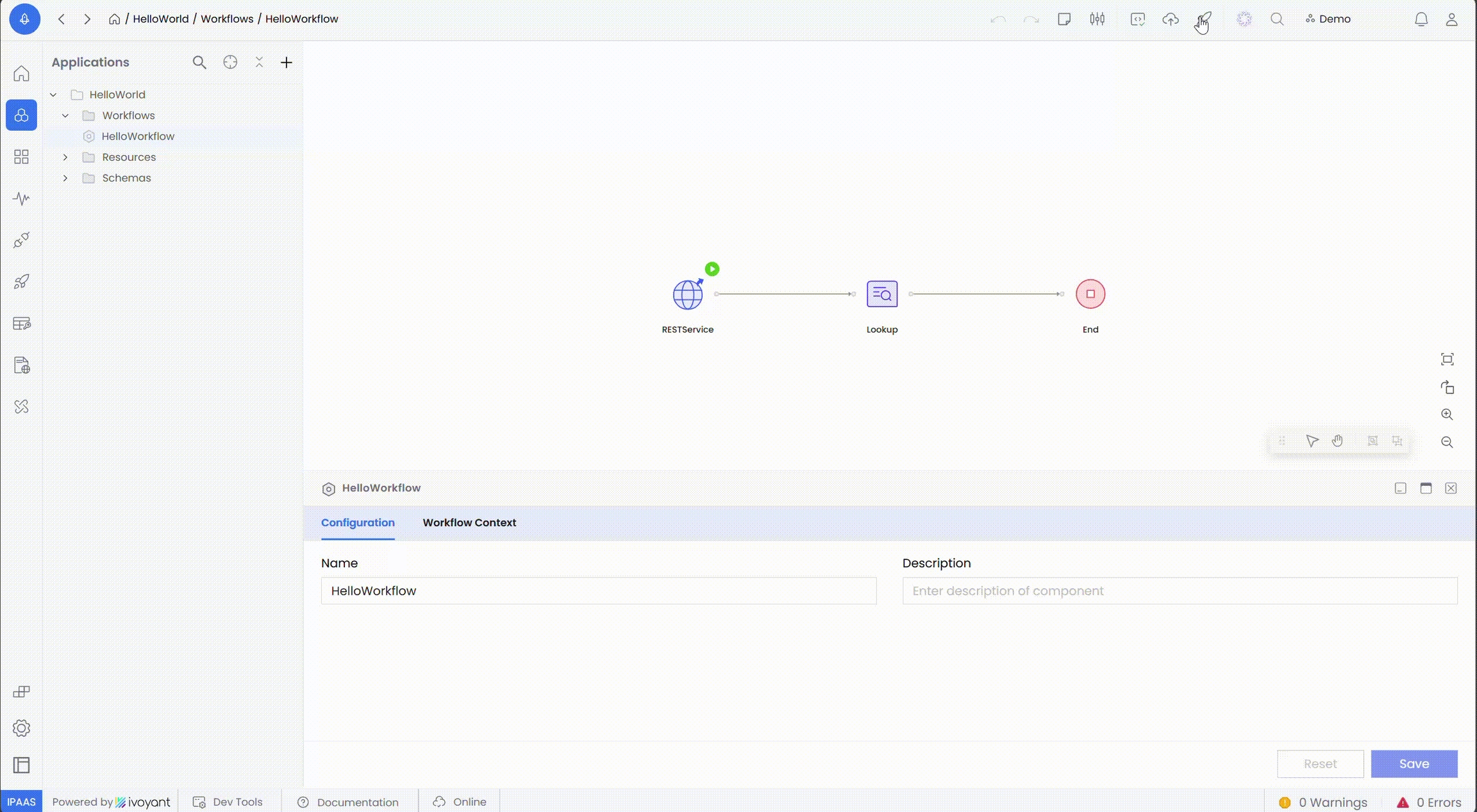

1. Navigate to the Deployment/Promoted Workflow

   • Go to the Deploy Page, which lists deployed and promoted workflow versions.

2. Select the Workflow Version

   • Identify the workflow to test and click the Test button next to it.

2. Steps to Test a Workflow

Step 1: Generate an Authentication Token

• For Secured API workflows

  1. Click the Refresh Token button in the Test Panel.

  2. A new authentication token is generated and applied automatically for secure testing.

• For Public API workflows

  • Authentication is not required. Proceed directly to defining the request details.

Step 2: Define Request Details

1. Headers

   • Specify necessary HTTP headers, such as

     • Content-Type: application/json

     • Authorization: Bearer <token> (for secured APIs).

2. Parameters

   • Add query parameters as key-value pairs, for example

     • ?id=12345&status=active

3. Body

   • Define the request body in the appropriate format (e.g., JSON).

   • Example

     Copy

     {
       "userId": "12345",
       "action": "activate"
     }

Step 3: Execute the Test

• Click the Send button to send the request to the selected workflow version.

Step 4: Analyze the Results

• The tool provides

  • Response Body: View the returned data from the workflow.

  • HTTP Status Code: Check the response status (e.g., 200 OK, 401 Unauthorized).
