# Configuring an SFTP Resource

To add an SFTP connection resource:

1. Navigate to the **Resources** folder of the application for which you want to configure the SFTP connection resource. Right-click and select **Add Resource**.\
   \
   The Configure New Resource modal appears.<br>
2. Select **SFTP Connection** as the connection type and click **Save**.\
   \
   Your resource is now created, and you can configure it as appropriate.<br>
3. To configure a resource, click on it.

Here's a table that lists out details associated with each of the fields in the ABS Connection Configuration panel. This panel has two tabs, Configuration and Advanced.

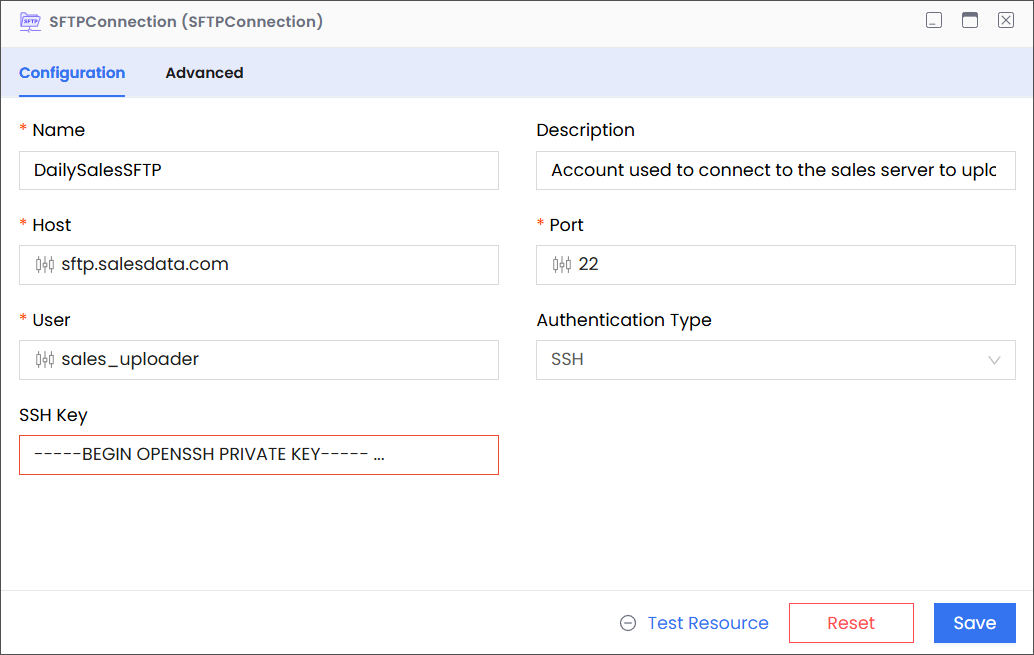

## Basic Configuration Details

| Field               | Required                                                  | Content Type      | Description                                                                                                                              | Example                                                              |
| ------------------- | --------------------------------------------------------- | ----------------- | ---------------------------------------------------------------------------------------------------------------------------------------- | -------------------------------------------------------------------- |
| Name                | Required                                                  | String            | A unique identifier for the SFTP configuration. This name will be used across the application to identify this specific storage account. | DailySalesSFTP                                                       |
| Description         | Optional                                                  | String            | Optional notes or context about the configuration.                                                                                       | Account used to connect to the sales server to upload daily reports. |
| Host                | Required                                                  | String            | The hostname or IP address of the SFTP server.                                                                                           | sftp.salesdata.com                                                   |
| Port                | Required                                                  | Number (Integer)  | The port used for the SFTP connection. Default is usually 22.                                                                            | 22                                                                   |
| User                | Required                                                  | String            | The username used to authenticate with the SFTP server.                                                                                  | sales\_uploader                                                      |
| Authentication Type | Required                                                  | String            | Choose the method of authentication: SSH Key or Password.                                                                                | SSH                                                                  |
| SSH Key             | Required if SSH is the authentication type selected.      | Text (Multi-line) | The private SSH key used for authentication, typically in PEM format.                                                                    | -----BEGIN OPENSSH PRIVATE KEY----- ...                              |
| Password            | Required if Password is the authentication type selected. | String            | The password required to log into the SFTP server.                                                                                       | NA                                                                   |

<figure><img src="https://3150268419-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FVvyIzXhljwsvkXUekYmw%2Fuploads%2F3RRscntZQ9sd6gncbDQ6%2FSFTP-Configuration.png?alt=media&#x26;token=40675a9d-06cc-4b2c-8f1c-123883ccca18" alt=""><figcaption></figcaption></figure>

## Advanced Configuration Details

| Field                | Required                                                                          | Content Type     | Description                                                                                                                                                                                                                                                                                                                                                                                      | Example                                       |
| -------------------- | --------------------------------------------------------------------------------- | ---------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | --------------------------------------------- |
| Timeout              | Optional                                                                          | Number (Seconds) | Maximum time to wait for the full file transfer operation to complete.                                                                                                                                                                                                                                                                                                                           | 120                                           |
| Connection Timeout   | Optional                                                                          | Number (Seconds) | Time to wait while establishing the SFTP connection before failing.                                                                                                                                                                                                                                                                                                                              | 30                                            |
| Host Verification    | Optional                                                                          | String           | <p>Specifies how the server’s identity is verified during connection:<br></p><ul><li><strong>None</strong>: No host verification (not recommended).</li><li><strong>Host Key</strong>: Validates against a known SSH host key. Displays the Host Key field.</li><li><strong>Host Key Fingerprint</strong>: Validates using a specific key fingerprint. Displays the Fingerprint field.</li></ul> | Host Key                                      |
| Host Key             | Required if Host Key is selected as the method for host verification.             | Text (SSH Key)   | The full public SSH host key of the server to verify against.                                                                                                                                                                                                                                                                                                                                    | ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA7...      |
| Host Key Fingerprint | Required if Host Key Fingerprint is selected as the method for host verification. | Text (String)    | The expected fingerprint of the server’s host key (SHA256, MD5, etc.).                                                                                                                                                                                                                                                                                                                           | SHA256:AbCdEfGhIjKlMnOpQrStUvWxYz1234567890== |

<figure><img src="https://3150268419-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FVvyIzXhljwsvkXUekYmw%2Fuploads%2FgRxYiwKqhhjO1JDfskff%2FSFTP-Configuration-Advanced.png?alt=media&#x26;token=88c60378-d32a-4782-94d8-91dc1719ae21" alt=""><figcaption></figcaption></figure>
